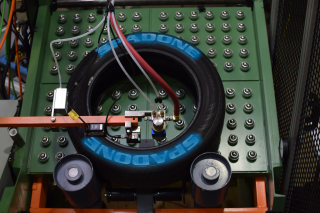

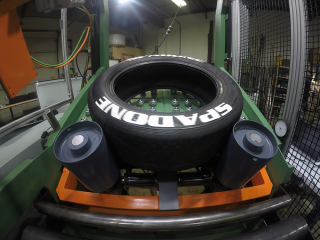

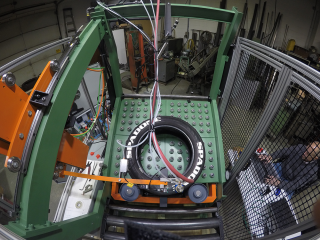

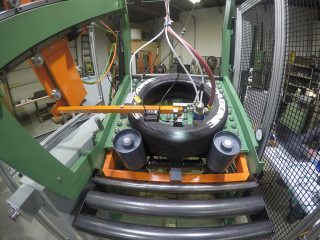

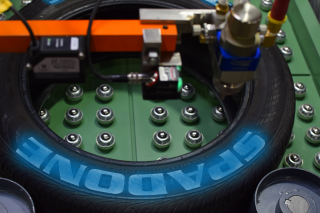

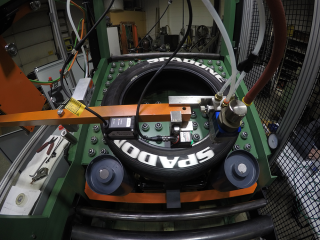

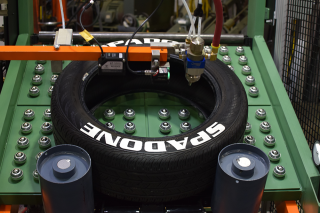

White Sidewall Sprayer

Features
- Fully Automatic
- High Precision Spray Accuracy
- Standalone System or Attached to Buffer
- Vision Detection Technology
- Design for Ease of Cleaning
- High production capability
- Rugged and Dependable
Description
Spadone’s White Sidewall Sprayers are designed for the most demanding applications. Since 1917, Spadone has manufactured rugged and dependable machines for the tire and rubber industry. Spadone’s White Sidewall Sprayer provides fully automatic white letter detection and positioning for passenger, SUV, truck, and motorcycle tires. With a broad range of options and configurations, Spadone’s White Sidewall Sprayers are designed with the highest production capability in mind.
The White Sidewall Protective Sprayer meets the highest quality and production demands of today’s tire industry and represents Spadone’s continuing commitment to outstanding engineering.
Specifications
Tire Capacity | up to 38” O.D. and 15” section height (tire width) |
Rate | Up to Four Tires per Minute |
Note: Above dimensions can be modified to
customer specifications |
|
Conveyor Width | 40” between frames |
Paint Type | Supplied by Customer. Water based only. |
Pump | Air Operated Diaphragm Pressure Pump with Air Operated Drum Agitator.
(Available as an Option) |
Paint Gun | HVLP type, All Air Operated |
Gun Positioners | Allen Bradley Linear Servo actuators, Kinetix 350 Drives |
Tire Rotation | ½ HP AC motor, timing belt drive turning two rollers mounted on a cylinder operated retractable frame. |

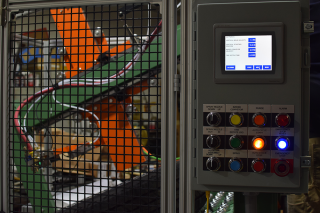

Controls | Allen-Bradley PLC with ethernet port,
NEMA 12 enclosure with disconnect, motor controls, etc. Operator’s controls mounted on enclosure. |
Air System | Pre-piped with shutoffs, regulators, solenoid valves, etc. |
Utilities | Electrical- 460V, 3-ph, 60HZ standard. (380v, 50 hz, 3 ph available. |
Air | 100 psi plant supply, approx. 10 CFM, ½ NPT inlet connection. |
