Complete bias cutting system.
VECTOR bias cutting system logo.

BIAS CUTTING SYSTEM

VECTOR is the next generation of bias cutting systems presented by Spadone.  Designed for speed, accuracy and the highest degree of flexibility, they are capable of producing bias-cut materials from 90° to less than 8°.  Whether your business is tires, conveyor belts, power transmission components, or any other product requiring reinforced, bias-cut material, we have you covered.

NO APPLICATION IT CAN'T HANDLE.

  • Bias cutter for Passenger (PCR) and Light Truck (LT) tire belt and ply production.
  • Bias cutter for Motorcycle tire belt and ply production.
  • Bias cutter for Aircraft and Aerospace tire belt and ply production.
  • Bias cutter for Truck and Bus (TBR) tire belt and ply production.
  • Bias cutter for Off the road (OTR) tire belt and ply production.
  • Bias cutter for Bicycle tire belt and ply production.

TIRE

  • Bias cutter for Conveyor Belt tire belt and ply production.

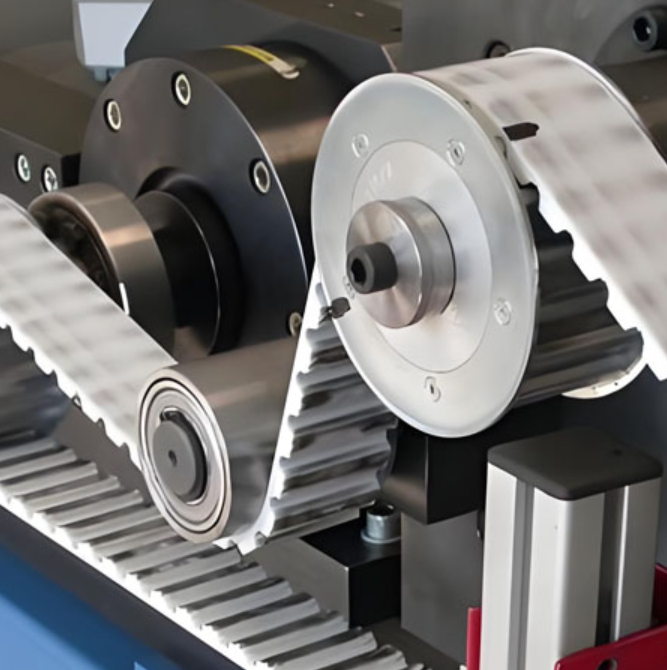

  • Bias cutter for Power Transmission and Timing Belt belt and ply production.
  • Bias cutter for Air Spring belt and ply production.
  • Bias cutter for Industrial Hose belt and ply production.
  • Bias cutter for Industrial Gasket belt and ply production.

INDUSTRIAL

  • Bias cutter for Rubber Track belt and ply production.
  • Bias cutter for Snowmobile Track belt and ply production.
  • Bias cutter for Industrial Rubber Track belt and ply production.
  • Bias cutter for Agricultural Track belt and ply production.

TRACKS

VECTOR bias cutting systems are designed to quickly and accurately convert calendered master rolls into belt and ply material for use in a variety of products.  We realize that every application and production environment is unique, so flexibility and customization are at the core of what we offer our customers.  We design systems to accommodate a wide range of technical and production requirements, including any configuration and level of automation.  Cutting angles can range from less than 8° to 90°.  Manual splicing is possible, as are a host of automated-splicing solutions, including the use of robotics.  We pride ourselves on being able to offer the lowest angles (<8°) and longest cuts (>25ft or 7.6m) in the industry.  We have yet to reach the limits of what is possible, however, and look forward to additional challenges!

Master Roll Material Width

60" (1,524mm)

Bias Angle Range

<8° to 90°

Cutting Length

300" (7,620mm)

Final Product Width Tolerance

+/- 0.060" (1.5mm)

Final Product Width Range

6" (152mm) to +99" (2,515mm)

Bias Angle Tolerance

+/- 0.5°

GENERAL SPECIFICATIONS

Reinforcement Materials

Polyester
Nylon
Fiberglass
Aramid
Nomex
Rayon
Textile Blends
Steel

Substrate Materials

Rubber
Silicone
Plastic

Master Roll Material Thickness

>0.25" (6mm)

OVERVIEW

Bias Cutter Let Off and Trimming Systems

SYSTEM COMPONENTS

LET OFF SYSTEMS

  • Configured for shell + bar, cassette, spool or other loading method.

  • Active guiding for liner and product centering control.

  • Torque vectoring tension control through use of servo motion control.

DANCER & TRIM SYSTEMS

  • Active dance control for automatic material feeding.

  • Optional edge trim system with manual or automatic setup.

  • Servo motor controlled payout of material into the cutting process.

CUTTER SYSTEMS

  • Manual or servo driven automatic control of cut angle.

  • Servo control of cutter head motion for ultra fast, precision cuts.

  • Material clamping system to guarantee accurate cuts.

SPLICE SYSTEMS

  • Manual or automatic type.

  • Automatic can be butt or lap splice.

  • Automated systems can servo vacuum pick and place or complete robotic handling.

WINDUP SYSTEMS

  • Configured to your windup needs for shell + bar, cassette, spool or other winding method.

  • Active guiding for liner and product centering control.

  • Liner tension control.

ANYTHING IS POSSIBLE

  • Slitters, gum edger systems, etc.

  • What are your requirements and needs?

  •  feeding.

CHALLENGE US
